12 methods for quality assurance in pcb manufacturing

12 varied techniques for ensuring quality in pcb production PCB quality control methods are incredibly important for PCB manufacturing and assembly to ensure the reliability and performance of electronic products.

OurPCB fully understands the importance of quality control in PCB manufacturing, and we want to put your mind at ease as your PCB partner. We’ve put together this article to explore the various testing and inspection methods used in PCB quality control processes.

Key Takeaways

  • PCB quality control involves several inspection and testing methods to ensure accuracy, reliability, and efficiency.
  • Visual and automated inspections like AOI and X-rays are highly valuable for detecting visible and hidden defects.
  • Electrical testing methods like ICT and functional testing verify component functionality and overall PCB performance.
  • Environmental and stress testing techniques ensure PCBs can handle real-world operating conditions.
  • Specialized inspections like cleanliness testing and thermal imaging address specific quality concerns in PCB manufacturing.

1. Visual Inspection

Visual inspection is usually the first step in PCB quality assurance. The main purpose of this PCB quality control system is to check for visible defects.

This printed circuit board inspection method involves trained inspectors carefully examining PCBs for visible defects such as misaligned components, solder bridges, or damaged traces. Visual PCB board inspection can detect issues like:

  • Incorrect component placement
  • Solder mask defects
  • Scratches or physical damage to the PCB
  • Missing or incorrect components
  • Solder joint quality issues

While visual inspection is important, it also has limitations in finding hidden defects or issues within the PCB layers. That's why it's mainly used together with other inspection methods to ensure comprehensive quality control in PCB manufacturing.

2. Automated Optical Inspection

Automated optical inspection (AOI) is an essential step in PCB quality control manufacturing processes. It uses high-resolution cameras and advanced image processing algorithms to detect defects.

AOI systems can inspect PCBs much faster and more accurately than human visual inspection, making them extremely useful in high-volume PCB manufacturing. Here are some of the main features of AOI in PCB quality control:

  • Inspection of solder joints, component placement, and polarity
  • Detection of missing or incorrect components
  • Identification of solder bridges and insufficient solder
  • Verification of correct component values and markings

AOI systems can be programmed to meet specific PCB manufacturer quality standards and customer requirements. This guarantees that each PCB meets the intended specifications. This automated process improves the overall quality and reliability of PCB products, while reducing the time and cost associated with manual inspection.

3. X-ray Inspection

X-ray inspection is a non-destructive testing method used to examine hidden solder joints and internal defects within PCB designs. This technique is helpful for inspecting multilayer PCBs, ball grid arrays (BGAs), and other components with hidden connections.

X-ray inspection in PCB quality control comes with multiple advantages in the production process:

  • Detection of voids in solder joints
  • Identification of internal short circuits or open circuits
  • Inspection of through-hole component soldering
  • Verification of proper alignment in multilayer PCBs

Using X-ray inspection in a quality management system allows PCB manufacturers to ensure the quality of connections that are not visible to the naked eye or traditional optical inspection methods. This helps improve the final product’s reliability and reduces the risk of field failures.

4. In-Circuit Testing

In-circuit testing (ICT) is a full-scale method used to verify the functionality of individual components on a PCB. This testing technique uses a bed-of-nails fixture to make contact with specific test points on the PCB, allowing for fast and accurate testing of different electrical parameters. Here are the main features of ICT:

  • Testing of component values (resistance, capacitance, inductance)
  • Verification of proper component orientation and polarity
  • Detection of short circuits and open circuits
  • Functional testing of active components (e.g., diodes, transistors)

ICT effectively identifies manufacturing defects and verifies that each component on the PCB meets its specified electrical characteristics and is of the highest quality.

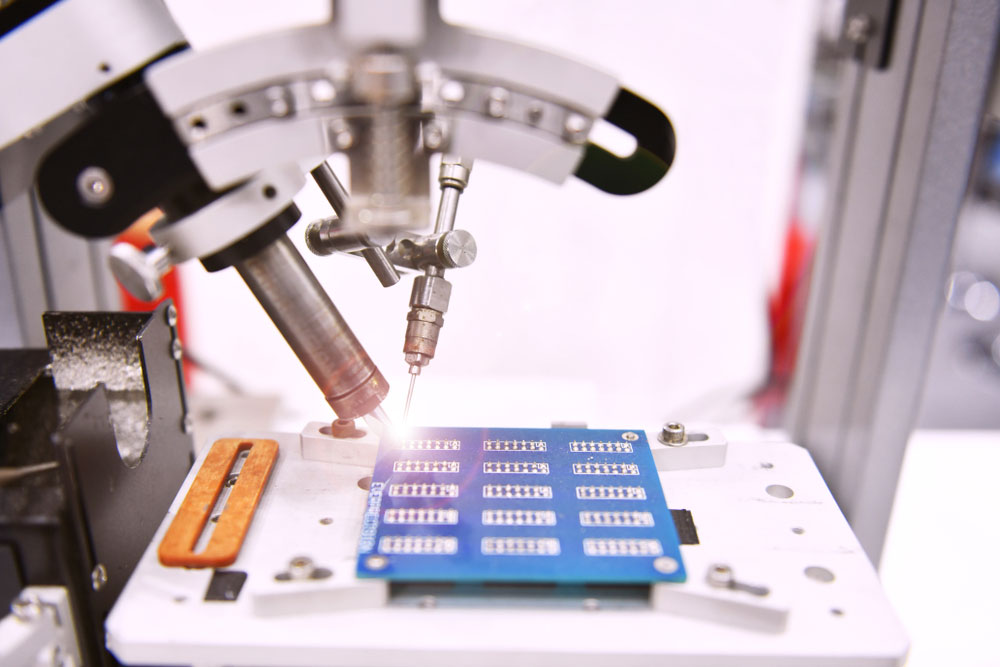

5. Flying Probe Testing

Flying probe testing (FPT) is a flexible and affordable method for testing PCBs. This PCB quality control method works well for low-volume production or prototype boards. Unlike ICT, which needs a custom fixture for each PCB design, FPT uses movable probes to make contact with test points on the board.

These are the benefits of FPT as part of strict quality control methods:

  • No need for expensive custom fixtures
  • Easily adaptable to different PCB designs
  • Ability to test hard-to-reach areas on densely populated boards
  • Quick setup time for new PCB designs

Flying probe testing can do many of the same electrical tests as ICT, including continuity checks, short circuit detection, and component value verification. This method results in high-quality, reliable PCBs in situations where the cost of a custom ICT fixture may not be worth it.

6. Functional Testing

Functional testing is an essential facet of the quality assurance process that verifies the overall performance of the assembled circuit board. This testing method in the assembly process simulates the PCB’s actual operating conditions to check that it functions as intended. Here are the main areas of functional testing in printed circuit board assembly:

  • Verification of proper input/output responses
  • Testing of various operating modes and functions
  • Performance testing under different load conditions
  • Compatibility testing with other system components

Functional testing helps you identify issues that might not be obvious through other testing methods, such as timing problems, signal integrity issues, or software-related defects. By ensuring that the PCB performs its intended functions correctly, this testing method is extremely helpful for maintaining high-quality standards and customer satisfaction.

12 different methods for quality assurance in pcb manufacturing 12 distinct approaches to quality assurance in pcb manufacturing

Special Offer: Get $200 off your order!

Enjoy $200 off your order! No hidden fees and no minimum order quantity required.
Email [email protected] to get started!

7. Burn-in Testing

Burn-in testing is a powerful quality control method used to find potential early-life failures in PCBs. This process involves operating the PCB under elevated stress conditions, usually high temperature and high voltage, for a long period. Below are the main features of burn-in testing in the quality assurance system:

  • Accelerated aging of components to reveal latent defects
  • Identification of weak components that may fail prematurely
  • Verification of long-term reliability and performance
  • Reduction of infant mortality rates in electronic products

Exposing PCBs to these stress conditions lets manufacturers identify and filter out boards with marginal components or manufacturing defects before they reach the end user. This process significantly improves the overall reliability and lifespan of the final product as part of your PCB manufacturing service.

8. Environmental Stress Screening

Environmental Stress Screening (ESS) is a quality control method implemented to check how durable PCBs are under various environmental conditions. This testing process exposes the PCBs to a range of stressors that simulate real-world operating environments. ESS usually includes:

  • Temperature cycling tests
  • Humidity exposure tests
  • Vibration testing
  • Shock testing
  • Altitude simulation

Subjecting PCBs to these environmental stresses enables manufacturers to find potential weaknesses or defects that might not be too clear under normal conditions. ESS helps ensure that PCBs will perform consistently in their intended operating environments, whether it's in automotive, aerospace, or other demanding applications.

9. Electrical Safety Testing

Electrical safety testing is particularly important for products used in consumer or industrial applications. This testing confirms that the PCB and the final product comply with relevant safety standards and regulations. These are the main parts of electrical safety testing:

  • Hipot (dielectric withstand) testing
  • Insulation resistance testing
  • Ground continuity testing
  • Leakage current testing

These tests ensure that the PCB can handle specified voltage levels without breakdown and that it provides enough protection against electric shock. Compliance with safety standards such as UL, CE, or IEC is important for product certification and customer safety.

10. Cleanliness Testing

Cleanliness testing checks that boards are free from contaminants that could affect their performance or reliability. This testing is especially helpful for PCBs used in high-reliability applications or harsh environments. Here are some common cleanliness testing methods:

  • Ionic contamination testing
  • Surface insulation resistance (SIR) testing
  • Visual inspection under UV light
  • Solvent extract conductivity testing

These tests help identify residues from the manufacturing process, such as flux residues or cleaning agent remnants. These could lead to corrosion, short circuits, or other reliability issues over time.

11. Thermal Imaging

Thermal imaging is a non-contact inspection method used to detect heat-related issues. This technique uses infrared cameras to capture the heat signature of a powered PCB, allowing inspectors to find problems like:

  • Overheating components
  • Poor heat dissipation
  • Uneven heat distribution
  • Short circuits causing localized heating

Detecting these thermal anomalies assists manufacturers in taking care of reliability issues before they lead to product failures. Thermal imaging is useful for high-power PCBs or designs with extremely strict thermal management requirements.

12. Solder Paste Inspection

Solder paste inspection (SPI) is done before component placement in the PCB assembly process. This automated inspection method uses advanced optical systems to verify the quality and quantity of solder paste deposited on the PCB pads and checks for solderability. These are the main aspects of SPI:

  • Verification of solder paste volume and height
  • Detection of bridging between pads
  • Identification of missing or insufficient solder paste
  • Measurement of pad coverage and alignment

SPI helps prevent defects such as solder bridges, insufficient connections, or component misalignment. This proactive quality control measure improves the overall quality of the soldering process and lowers the likelihood of defects in the final assembled PCB.

OurPCB: High-Quality PCB Assembly

At OurPCB, we understand the importance of comprehensive quality control in PCB manufacturing and assembly. Our advanced facilities use these testing and inspection methods to ensure that every PCB we produce meets the highest quality standards.

Choose OurPCB for your next project and feel the difference that true quality assurance can make. Contact us to bring your PCB vision to life and learn how we can help you achieve the reliability and performance you need.

PCB Quality Control: 12 Methods for Quality Assurance in PCB Manufacturing FAQs

What are PCB standards?

PCB manufacture standards are industry-wide guidelines that define quality, performance, and safety requirements for printed circuit boards. These standards, such as IPC and ANSI, ensure that there is consistency and reliability across PCB manufacturing and assembly processes.

What is RoHS?

Restriction of Hazardous Substances (RoHS) is a European Union directive that limits the use of certain hazardous materials in electrical and electronic equipment. It aims to reduce environmental impact and health risks by limiting substances like lead, mercury, and cadmium in PCBs and other electronic products.

How do you control raw PCB material?

Controlling PCB raw materials involves strict supplier selection and incoming material inspection processes. This includes verifying material specifications, conducting chemical analyses, and performing physical tests. This will ensure the quality and consistency of base materials, copper foils, and other components used in PCB manufacturing.

Back to Top: PCB Quality Control: 12 Methods for Quality Assurance in PCB Manufacturing
